美國ASME蓄能器
1.型號說明
BA(TA) – ※ / ※ –※ – ※
?、? ② ③ ④ ⑤
① 結構形式：底部拆式蓄能器：BA 頂部拆式蓄能器：TA1、TA2
?、?容積：0.15～15gal
③ 最高工作壓力：3000PSI～5000PSI
④ 連接方式：T—螺紋連接，F—法蘭連接
⑤ 工作介質：O—液壓油，W—水

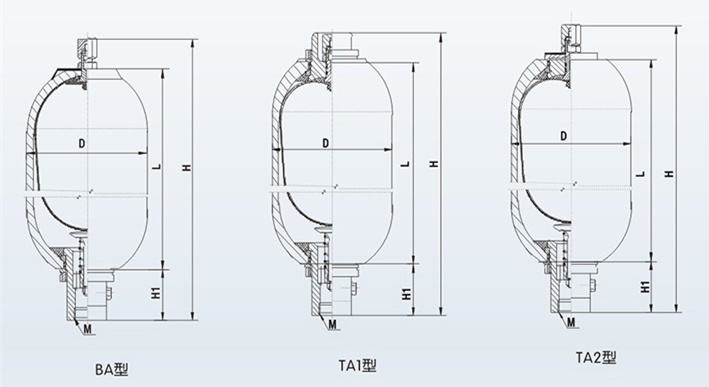

2.內部結構及外形尺寸
設計壓力 | 20.7Mpa | 3000psi |
34.5Mpa | 5000psi | |
實驗壓力 | 27Mpa | 3900psi |
44.9Mpa | 6500psi | |
工作介質 | 油，氮氣 | Oil N2 |
工作溫度 | -20℃～70℃ | -4F～158F |
充氣壓力范圍 | 小于最低工作壓力90% | ≤90minp% |
大于最高工作壓力25% | ≥25%maxp | |
連接方式 | 螺紋連接6L/S | Threaded connection6L/S |
法蘭連接9L/S | Flanged connection9L/S | |
固定方式 | 緊固環與支承座 | Fastening ring&Supporting seat |
安裝方式 | 垂直安裝 | Vertically mounted |
型號 | 容積 | 尺寸 | 凈量 | ||||||||||
H | L | H1 | D | M | |||||||||
gal | L | in | mm | in | mm | in | mm | in | mm | NPT | IB | kg | |
BA-0.15/3000-※-※ | 0.15 | 0.6 | 12.6 | 320 | 7.48 | 190 | 2 | 51 | 3.5 | 89 | 3/4" | 8.8 | 4 |
BA-0.25/3000-※-※ | 0.25 | 1 | 12.6 | 320 | 7.48 | 190 | 4.5 | 114 | 10.8 | 4.9 | |||
BA-0.6/3000-※-※ | 0.6 | 2.5 | 16.54 | 420 | 11.02 | 280 | 2.6 | 66 | 6 | 152 | 11/4" | 30 | 14 |
BA-1.0/3000-※-※ | 1 | 4 | 20.87 | 530 | 15.35 | 390 | 40 | 18 | |||||
BA(TA)-2.5/3000-※-※ | 2.5 | 10 | 21.56 | 550 | 16.14 | 410 | 3.5 | 89 | 9 | 229 | 2" | 81 | 37 |
BA(TA)-5/3000-※-※ | 5 | 20 | 33.46 | 850 | 27.95 | 710 | 125 | 57 | |||||
BA(TA)-8/3000-※-※ | 8 | 32 | 47.64 | 1210 | 42.13 | 1070 | 154 | 70 | |||||
BA(TA)-10/3000-※-※ | 10 | 40 | 56.70 | 1440 | 51.18 | 1300 | 209 | 95 | |||||
BA(TA)-11/3000-※-※ | 11 | 44 | 61.42 | 1560 | 55.9 | 1420 | 227 | 103 | |||||
BA(TA)-14/3000-※-※ | 14 | 56 | 75.60 | 1920 | 70.08 | 1780 | 275 | 125 | |||||
BA(TA)-15/3000-※-※ | 15 | 60 | 80.31 | 2040 | 74.8 | 1900 | 293 | 133 | |||||
型號 | 容積 | 尺寸 | 凈量 | ||||||||||
H | L | H1 | D | M | |||||||||
gal | L | in | mm | in | mm | in | mm | in | mm | NPT | IB | kg | |
BA-0.15/5000-※-※ | 0.15 | 0.6 | 12.99 | 330 | 7.87 | 200 | 2 | 51 | 3.5 | 89 | 3/4" | 10 | 4.5 |
BA-0.25/5000-※-※ | 0.25 | 1 | 12.99 | 330 | 7.87 | 200 | 4.5 | 114 | 12 | 5.4 | |||
BA-0.6/5000-※-※ | 0.6 | 2.5 | 17.32 | 440 | 11.81 | 300 | 2.6 | 66 | 6 | 152 | 11/4" | 35 | 16 |
BA-1.0/5000-※-※ | 1 | 4 | 21.65 | 550 | 16.14 | 410 | 45 | 21 | |||||
BA-2.5/5000-※-※ | 2.5 | 10 | 23.23 | 590 | 17.76 | 450 | 3.5 | 89 | 9 | 229 | 2" | 112 | 51 |
21.26 | 540 | 15.75 | 400 | 9.65 | 245 | 112 | 51 | ||||||
BA-5/5000-※-※ | 5 | 20 | 35.83 | 910 | 30.31 | 770 | 9 | 229 | 174 | 79 | |||
32.68 | 830 | 27.17 | 690 | 9.65 | 245 | 176 | 80 | ||||||
BA-8/5000-※-※ | 8 | 32 | 51.57 | 1310 | 46.06 | 1170 | 9 | 229 | 249 | 113 | |||
46.46 | 1180 | 40.94 | 1040 | 9.65 | 245 | 253 | 115 | ||||||
BA-10/5000-※-※ | 10 | 40 | 61.46 | 1560 | 55.91 | 1420 | 9 | 229 | 295 | 134 | |||
55.12 | 1400 | 49.61 | 1260 | 9.65 | 245 | 304 | 138 | ||||||
BA-11/5000-※-※ | 11 | 44 | 66.54 | 1690 | 61.02 | 1550 | 9 | 229 | 319 | 145 | |||
59.84 | 1520 | 54.33 | 1380 | 9.65 | 245 | 330 | 150 | ||||||
BA-14/5000-※-※ | 14 | 56 | 81.89 | 2080 | 76.38 | 1940 | 9 | 229 | 394 | 179 | |||
73.62 | 1870 | 68.11 | 1730 | 9.65 | 245 | 370 | 186 | ||||||
BA-15/5000-※-※ | 15 | 60 | 87.01 | 2210 | 81.50 | 2070 | 9 | 229 | 418 | 190 | |||
78.35 | 1990 | 78.35 | 1850 | 9.65 | 245 | 436 | 198 | ||||||
注：① BA：為底部拆式蓄能器， TA：為頂部拆式蓄能器
?、?客戶如需要加大流量或要求作頂部修理的其他型式尺寸的蓄能器可訂購生產。
